Gas Turbine Air Inlet Filtration: Why a Two-Stage F9/H14 Cartridge Filter System Decides Compressor Blade Life, Heat Rate, and Generation Revenue

By Mehul J Panchal, Founder, Filter Concept Group | 9-minute read | Power Generation / Oil & Gas Filtration Series

Gas turbines are the single most demanding rotating equipment in industrial operation. GE Frame 9HA, Siemens SGT-8000H, Mitsubishi M701F, Ansaldo AE94.3A — the heavy-duty gas turbines that anchor combined cycle power plants worldwide ingest 600 to 1,000 kg of air per second at full load. Offshore GE LM2500 aero-derivative turbines on FPSO and platform power generation consume 65 kg per second. Every cubic metre of that air passes through first-stage compressor blades operating at tip speeds approaching the speed of sound, with blade-to-casing clearances measured in tenths of a millimetre.

From NTPC Faridabad and Adani CCPP installations across India to QatarEnergy and ADNOC offshore platforms in the Gulf, from Saudi Aramco co-generation to Shell, ExxonMobil, and TotalEnergies upstream operations, from EU combined cycle power producers to GenCo operations across the Americas — every gas turbine asset shares the same economic equation. A 1% efficiency loss from compressor blade fouling or erosion at a 500 MW combined cycle unit costs USD 600,000 to 2.5 million per year in fuel consumption. A compressor blade failure from chloride-assisted corrosion in a coastal or offshore environment triggers a hot section overhaul at USD 2 to 8 million plus 4–6 weeks of generation outage. What sits between ambient air and those compressor blades is the inlet air filtration system — and what determines whether the asset earns or loses its capacity payments is the engineering of that filtration system. This article explains why a properly engineered Two-Stage F9/H14 Cartridge Filter System has become the global engineering standard for gas turbine inlet air protection.

The Hidden Economics of Gas Turbine Inlet Filtration

Three numbers explain why gas turbine inlet filtration deserves first-rank capital priority on every CCPP, cogeneration, and offshore gas turbine installation.

Driver one: compressor blade fouling and heat rate degradation. Salt mist, sand, oil aerosol, and atmospheric particulate that escape the inlet filtration system deposit on first-stage compressor blades. Each layer of deposition disrupts the aerodynamic profile, increasing pressure ratio losses and degrading isentropic efficiency by 1–2% per 1,000 operating hours. For a 500 MW combined cycle unit, a sustained 2% efficiency loss translates to USD 1.2 to 5 million per year in additional fuel consumption — a number that bleeds through the plant operating budget until offline water wash recovery, which itself requires 24–48 hours of generation outage.

Driver two: blade erosion and hot section damage. Particulate above 5 micron passing the inlet filtration system causes mechanical erosion of compressor and — in the worst case — hot section blades. Salt mist in coastal and offshore environments produces chloride-assisted stress corrosion cracking of nickel-based superalloy blade coatings. A compressor blade failure event requires hot section disassembly at USD 2 to 8 million in repair plus 4–6 weeks of generation outage — with lost generation revenue compounding the direct repair cost by 2–3×. OEM warranty terms (GE, Siemens, MHI, Ansaldo) explicitly link blade warranty to documented inlet air filter performance.

Driver three: offline water wash frequency. When blade fouling is severe, operators schedule offline crank-soak water wash — a procedure that recovers some of the lost efficiency but requires 24–48 hours of generation outage per wash. At a 500 MW combined cycle unit, that is USD 200,000 to 500,000 in lost capacity revenue per wash event. Mature combined cycle plants with degraded inlet filtration perform 4–6 offline washes per year; properly filtered units perform 1–2 — a USD 600,000 to 2 million annual capacity revenue protection from filtration alone.

Why Generic Inlet Filtration Fails on Modern Gas Turbines

Gas turbine inlet air service combines four constraints that defeat any conventional industrial air filtration:

• Single-stage filtration cannot deliver F9/H14 Modern gas turbines (F-class and H-class) require inlet air filtered to EN ISO 16890 ePM1 80% (F9 class) for inland duty or EPA-grade EPA1 H14 (HEPA 99.995% at 0.3 micron) for coastal and offshore duty. Single-stage filtration cannot deliver this efficiency without unacceptable pressure drop. The engineered answer is a multi-stage architecture: G4 pre-filter (coarse dust) → F9 intermediate (sub-1-micron capture) → H13/H14 terminal (salt mist and fine particulate), with FC-PDS™ selecting stage configuration from site-specific air quality data.
• Salt mist tolerance in coastal and offshore service. Salt-laden marine air carries NaCl aerosol that bypasses standard inlet filters and deposits on compressor blades, where it bonds chemically to coatings and cannot be removed by online water wash. Chloride-assisted stress corrosion cracking follows within months in H₂S environments. The engineered answer is hydrophobic-treated coalescing pre-stage that captures salt aerosol at the inertial impaction stage, followed by HEPA H14 terminal filtration validated for marine service — the configuration that NORSOK S-001 and offshore platform safety standards require.
• Pulse-jet self-cleaning for high-dust inland sites. Combined cycle plants in industrial GIDC zones (Gujarat), MIDC areas (Maharashtra), GCC industrial cities, and Chinese tier-2 industrial belts ingest air at PM10 concentrations of 120–800 µg/ms — well above the 50–100 µg/ms design assumption for European GT installations. Without pulse-jet self-cleaning capability, static filters require replacement at 4–6 month intervals rather than the design 12–18 months. The engineered answer is pulse-jet self-cleaning pre-stage configuration for high-dust
• OEM specification compliance. GE, Siemens, MHI, Ansaldo, and Rolls-Royce each publish detailed inlet filtration specifications for their gas turbine models. Inlet face velocity, pressure drop, particulate capture efficiency, and — critically — the documentation requirements that maintain OEM blade warranty. Generic inlet filtration without OEM cross-reference invalidates the blade warranty, transferring full repair exposure to the plant operator. The engineered answer is OEM specification cross-reference with documented compliance to each turbine model’s requirements.

Each of these failures independently degrades gas turbine performance. Their combined effect is what produces the heat rate degradation and capacity loss that haunt gas turbine operator P&Ls globally.

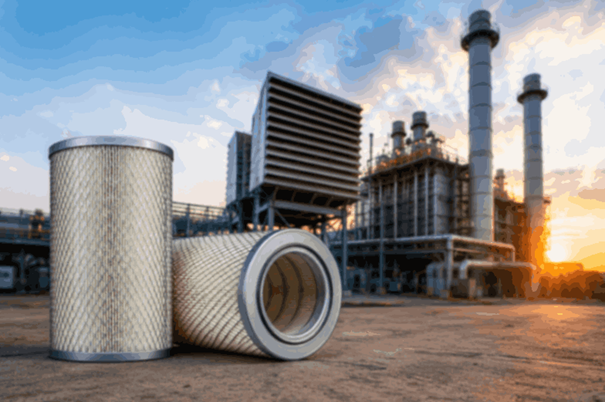

The FCPL Solution: Two-Stage F9/H14 Cartridge Filter System

Filter Concept’s engineered solution for gas turbine inlet air filtration is a complete multi-stage filtration system installed in the turbine inlet duct, immediately downstream of the inlet weather hood and upstream of the silencer and compressor bell-mouth. Every design element is matched to the specific gas turbine model and site air quality envelope.

Multi-stage architecture per site requirements. Stage 1: weather hood with insect screen and droplet eliminator. Stage 2: G4 panel pre-filter or pulse-jet self-cleaning pre-filter (selected per site dust loading). Stage 3: F9 bag filter or compact filter for sub-1-micron particulate capture. Stage 4 (coastal/offshore): EPA H14 terminal filter (99.995% at 0.3 micron) with hydrophobic treatment for salt mist capture. Stage 5 (offshore): coalescing moisture separator for marine humidity.

OEM cross-referenced filter selection. FC-PDS™ specifies stage configuration with documented cross-reference to GE, Siemens, MHI, Ansaldo, Rolls-Royce, Solar Turbines, and aero-derivative OEM inlet filter specifications. Filter face velocity, pressure drop, and particulate capture efficiency are matched to each turbine model. Documentation pack supports OEM blade warranty maintenance and protects the plant operator from warranty-invalidation exposure.

EN ISO 16890 and EN 1822 certified media. F9 stage filters tested to EN ISO 16890 ePM1 80% with documented test data per ISO 16890-1/2/3/4. H14 terminal filters tested to EN 1822-1:2019 with individually-scanned test reports for each filter — the documentation standard that high-availability combined cycle and offshore operations require for safety case compliance.

Static and pulse-jet self-cleaning options. Static pleated configuration for low-dust inland sites with predictable filter changeout economics. Pulse-jet self-cleaning configuration for high-dust industrial environments — the only architecture viable in GIDC-zone, MIDC, and GCC industrial cluster service. SCADA-integrated differential pressure monitoring with output to plant DCS for early warning of filter loading.

Retrofit and new-build configurations. Drop-in retrofit filter elements for obsolete OEM filter assemblies on ageing combined cycle and offshore gas turbines — extending the service life of existing inlet ducts without complete system replacement. New-build inlet filter house engineering for greenfield combined cycle and cogeneration projects, including F-class and H-class advanced gas turbines.

FC-PDS™ specification methodology. Filter stage configuration, media class selection, and operating envelope are specified from your actual gas turbine model, site air quality data, ambient temperature/humidity profile, operating regime (baseload vs cycling), and OEM warranty terms. Site-specific engineering produces sustained gas turbine performance across the full operating cycle.

Engineering Specifications at a Glance

Global Standards & Regional Compliance Matrix

Gas turbine inlet air filtration sits at the intersection of OEM equipment specifications, air filtration classification standards, and — for offshore operations — platform safety case requirements. The FCPL Two-Stage F9/H14 Cartridge Filter System is engineered to international baselines with regional certifications added per destination market:

Two frameworks deserve particular attention. EN ISO 16890 has become the universal global benchmark for air filter classification, replacing the older EN 779 standard and converging on a single performance language across markets. EN 1822-1:2019 governs HEPA/EPA/ULPA filter performance with individual filter scan testing — the documentation standard that high-availability gas turbine operations now require. The FCPL system is engineered to satisfy both  making it qualifiable across global gas turbine procurement environments including offshore safety case-driven installations.

The Bottom Line for Combined Cycle Plant Managers, Offshore Operations Engineers, and Turbine Asset Owners

Gas turbine inlet filtration is the rare engineering decision where the heat rate case, the blade life case, the OEM warranty case, and the capacity revenue case all align in the same direction. The cost of getting it wrong is not a maintenance line item — it is heat rate degradation measured in millions of dollars per year, blade failure events costing multiples of the annual filtration budget, and — increasingly — OEM warranty invalidation that transfers catastrophic repair exposure to the plant operator. The cost of getting it right is a fraction of any one of those exposures.

Filter Concept has been engineering gas turbine inlet filtration solutions for over twenty-three years, with installations across combined cycle power plants, offshore platform power generation, cogeneration installations, and aero-derivative turbine applications in 90+ countries. Customers include major Indian power generators (NTPC, Adani Power, Tata Power), GCC offshore operations (ADNOC, Saudi Aramco, QatarEnergy), Southeast Asian combined cycle operators (PETRONAS, TNB), and EPC contractors serving global gas turbine capacity expansion. The Two-Stage F9/H14 Cartridge Filter System is one of our most engineered installations — because gas turbine inlet filtration requirements are now globally standardised under EN ISO 16890 and EN 1822, but the discipline of engineering multi-stage systems with OEM cross-reference, pulse-jet self-cleaning options, and offshore safety case documentation is rare in the global filtration market.

If your offline water wash frequency has crept upward, if your unit heat rate has trended unfavourably over the operating cycle, or if your last OEM blade inspection raised any flags on chloride-assisted corrosion — your gas turbine inlet filtration is the first place to look. We are happy to review your gas turbine specification, site air quality data, and current filtration performance, and offer a sized FC-PDS™ specification at no obligation, anywhere in the world.

ABOUT THE AUTHOR

Mehul J Panchal is the Founder of Filter Concept Group, a global industrial filtration manufacturer serving 5,000+ customers across 90+ countries with 23+ years of engineering depth. The company’s product portfolio spans 50+ industries including oil & gas, LNG, petrochemicals, power, water treatment, pharmaceuticals, and food processing. Mehul writes on filtration economics, process engineering, and the practical realities of running filtration systems at industrial scale.
