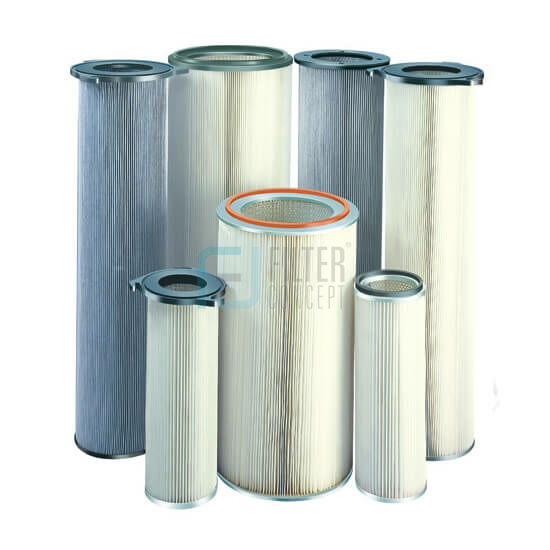

Pleated Dust Collection Cartridges
Pleated Dust Collection Cartridges are made up of 100 % spun bonded polyester media, unlike pleated dust collection bag media with different coatings on it, as per the requirement of the applications. Construction-wise Pleated Dust Collection Bags & cartridges are similar. They differ only in variation of filtration area. Dust collectors’ manufacturers / OEMs can replace conventional tube bag with pleated dust collection bag & cartridges with just a few minor changes in the present equipment design. This polyester media is made-up of high-tenacity filament yarn without using any binding agent. Thus, the hard finished material is very stable against hot gas attack &are structurally durable. This unique & the hard finished material provides features of good pleat ability, high durability, and a uniquestructure of very fine filament yarn which offers high performance in filtration. Thermally tight bonded media provides better washability, excellent pleat ability, stable structure, fine dust release & good resistance to particle penetration into the media. The filter media is pleated in different pleated depths & heights to accommodate desired filtration area.
Pleated spun bonded polyester the filter media is placed in a cylindrical configuration with the support of a metal core & encapsulated with a metal end caps to form a pleated dust collection cartridge. The end caps are configured to mount as clean side or dirt side fitment. In the case of a metal caps these cartridges are supported with soft sponge rubber sealing to ensure positive sealing of the filter while fitment.
- High filtration area up to 20 m2.
- Universal fixing arrangements.
- Open Pleat Spacing.
- Very high air to cloth ratio.
- Low consumption of compressed air (For Cleaning).
- High efficiency due to Surface Filtration.
- Very high filtration efficiency.
Filter media
- Spun Bonded Polyester Media
Area weight of filter media
- 170 gms/m2
- 200 gms/m2
- 260 gms/m2
Coating
- PTFE coating for oil & moisture removal.
- Aluminum coating for antistatic application.
- Stainless steel coating for antistatic application.
- Fire retardant coating.
- PTFE lamination for very stick dust.
Sizes
| Sr. No. | Diameter Of element | Length Of filter Element |
| 1 | 150 mm | 500 mm |
| 2 | 150 mm | 1000 mm |
| 3 | 150 mm | 1400 mm |
| 4 | 150 mm | 2000 mm |
| 5 | 225 mm | 500 mm |
| 6 | 225 mm | 1000 mm |
| 7 | 225 mm | 1400 mm |
| 8 | 225 mm | 2000 mm |
| 9 | 325 mm | 300 mm |
| 10 | 325 mm | 500 mm |
| 11 | 325 mm | 606 mm |
| 12 | 325 mm | 1000 mm |
| 13 | 325 mm | 1400 mm |
Fitment configuration
- Clean Side Fitment (Model: 2 & 3)
- Dirt Side Fitment (Model : 1)
Filtration area
- 0.96 m2 to 20.0 m2
| Pharmaceuticals |
| Steel & Power |
| Powder coating |
| Shot Blasting |
| Cement |
| Chemicals |
| Metals & Minerals |
| Paints & Pigments |
FCIPDC-M1-150500-M
| FCI | PDC | Model | Size | Material |
| Pleated Dust Collection Cartridge | M1- Model – 1 | 150 x 500 | A – FCI 170 | |
| M2- Model – 2 | 150 x 1000 | B – FCI 200 | ||
| M3- Model – 3 | 150 x 1400 | C – FCI 200 + PTF | ||
| 150 x 2000 | D – FCI 200 + Alu | |||
| 225 x 500 | E – FCI 260 | |||
| 225 x 1000 | F – FCI 260 + PTF | |||
| 225 x 1400 | G – FCI 260 + ALU | |||
| 225 x 2000 | H – FCI 260 + Alu + PTF | |||
| 325 x 500 | I – FCI 260 PTFE + LAM | |||
| 325 x 606 | ||||
| 325 x 1000 | ||||
| 325 x 1400 |
