Compressed Air Filter

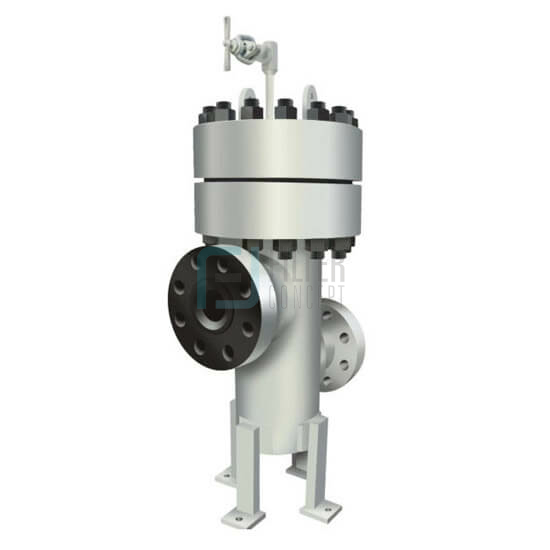

Compressed air is a very common source of energy. For its effective utilization, it must be clean. Filter Concept offers a wide range of compressed air filters for the removal of dirt, dust, rust, condensates, moisture contents, oil impurities & exhaust fumes. Filtered compressed air results in lower downtime & reduces production loss. These filtration systems are designed based on their flow requirement, line size, working pressure, working temperature & level of filtration rating. Filter housings can be made of SS 316, SS 304, carbon steel or aluminum. Filter elements are manufatured with varieties of selective fiber media to ensure desired filtration level is met.
Operation
Unfiltered compressed air enters into filtration systems with positive pressure & passes through selective filter media to remove dirt, dust, moisture & oil contaminants.
These filters are further classified into three different categories
- Particle removal filters (for removal of dirt, dust, rust & other metal particles up to 1 micron).
- High-efficiency filters (for removal of oil & moisture contents and fine particles up to 0.01 micron).
- Carbon filters (for removal of oil vapour, test & odour).
- Features & Benefits
- Technical Specifications
- Applications

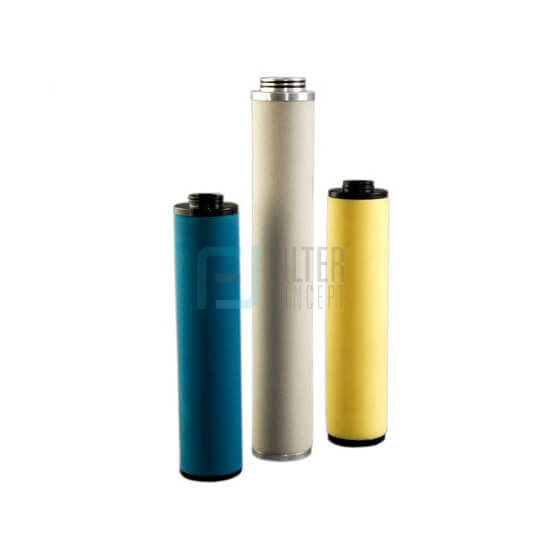

- Compressed Air Filter Element Equivalent To
- Compressed Air Filter Element Equivalent To
- Compressed Air Filter Element Equivalent To
- High flow rate.
- Low pressure drop due to pleated configuration.
- High efficiency due to surface filtration.
- Reduction in downtime & maintenance.
- Easy to install & remove.
- Choice of filter media & filter housings.
Capacity
- Up to 95,000 NM3/hr & more
MOC of System
- SS 316, SS 304 , MS/CS , Aluminum
MOC of Element
- SS 316L sintered media
- Sintered ceramic
- Sintered polyethylene
- Synthetic fiber media
- Borosilicate glass fiber
| Pharmaceuticals |
| Chemicals |
| Food & Beverages |
| Steel & Power |
| Cement |
| Breathing Application |
| Sr. No. | Our Part No. | OEM Part No. |
| 1 | FCI – 6343 | 1202625501 |
| 2 | FCI – 6240 | 1202625903 |
| 3 | FCI – 6188 | 1202625904 |
| 4 | FCI -6223 | 291019200DD |
| 5 | FCI – 6222 | 2901019700PD |
| 6 | FCI – 6195 | 2901053200DD |
| 7 | FCI – 6230 | 2901053300PD |
| 8 | FCI – 6295 | 2901053400QD |
| 9 | FCI -6209 | 290105300DD |
| 10 | FCI -6281 | 2901053600PD |
| 11 | FCI -6340 | 2901054400 |
| 12 | FCI – 6341 | 2901054500 |
| 13 | FCI – 6281 | 2901122100 |
| 14 | FCI -6293 | 290112210PD |
| 15 | FCI – 6292 | 2901122300DD |
| Sr. No. | Our Part No. | OEM Part No. |
| 1 | FCIDH009AO | K009AO |
| 2 | FCIDH009AA | K009AA |
| 3 | FCIDH017AO | K017AO |
| 4 | FCIDH017AA | K017AA |
| 5 | FCIDH030AO | K030AO |
| 6 | FCIDH030AA | K030AA |
| 7 | FCIDH058AO | K058AO |
| 8 | FCIDH058AA | K058AA |
| 9 | FCIDH145AO | K145AO |
| 10 | FCIDH145AA | K145AA |
| 11 | FCIDH220AO | K220AO |
| 12 | FCIDH220AA | K220AA |
| 13 | FCIDH330AO | K330AO |
| 14 | FCIDH330AA | K330AA |
| Sr. No. | PE | FF | MF | SMF | AK |
| 1 | 02/05 | 02/05 | 02/05 | 02/05 | 02/05 |
| 2 | 03/05 | 03/05 | 03/05 | 03/05 | 03/05 |
| 3 | 03/10 | 03/10 | 03/10 | 03/10 | 03/10 |
| 4 | 04/10 | 04/10 | 04/10 | 04/10 | 04/10 |
| 5 | 04/20 | 04/20 | 04/20 | 04/20 | 04/20 |
| 6 | 05/20 | 05/20 | 05/20 | 05/20 | 05/20 |
| 7 | 05/25 | 05/25 | 05/25 | 05/25 | 05/25 |
| 8 | 07/25 | 07/25 | 07/25 | 07/25 | 07/25 |
| 9 | 07/30 | 07/30 | 07/30 | 07/30 | 07/30 |
| 10 | 10/30 | 10/30 | 10/30 | 10/30 | 10/30 |
| 11 | 15/30 | 15/30 | 15/30 | 15/30 | 15/30 |
| 12 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 |
| 13 | 30/30 | 30/30 | 30/30 | 30/30 | 30/30 |
