Oil Adsorbing Filter Cartridge
Oil adsorption filter cartridges have been specifically developed and manufactured for the high-efficiency removal of dissolved & dispersed oils from water within the gas & oil production industries, marine bilge and ballast water treatment systems, contaminated surface water runoff & other industrial process industries. The material of Filter media of this cartridge contains modified cellulose. This filter media will remove up to 95% of total hydrocarbon elements from water in just a single pass. Dissolved oil, emulsions & dispersed droplets are also adsorbed and retained from water by filter media.
- Features & Benefits
- Construction
- Technical Specifications
- Configuration
- Applications
- Product Code Abbreviation
- Instantaneous adsorption.
- Better than activated carbon.
- High flow rates.
- Removes dissolved and dispersed oils.
- High efficiency removal of oils.
- Low-pressure drop.
- Media can hold 300 % of its own weight.
- No release of removed hydrocarbon.
- Typically, over 90% of total hydrocarbons are removed in a single pass through the cartridge with no release once adsorbed.
- Lower outlet levels of hydrocarbons can be achieved by connecting cartridges in series.
- Higher flow rates also can be achieved by connecting cartridges in a parallel design.

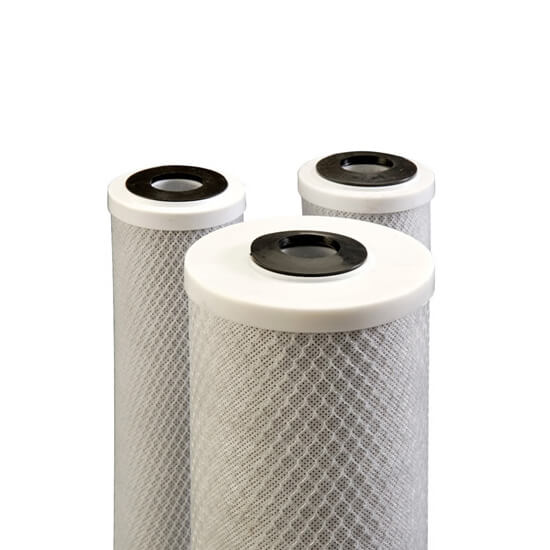

Oil adsorbing filter cartridges are made by rolling the sheet material onto a central core support. The core & outer surface of filter media rolls are covered with retaining mesh. The complete module is then encapsulated in to end caps suitable for fitting into a variety of housing configurations.
| Standard Sizes | 10”, 20”, 30”, 40” Long |
| Micron Rating | 5, 10, 20 Micron |
| Standard Outside Diameter | 70 mm, 110 mm |
| Inner Diameter | 28 mm |
Double Open Type (DOE Type)
| Gas and Oil facilities |
| Leisure/Commercial Shipping Bilge Water |
| Surface Water Run off (Truck Stops, Airports) |
| Auto Service Stationsgate |
| Machine Shops |
| Industrial Processes |
| Factories and Repair Shops |
| Car and Truck Washes |
FCICAOCX68-005-10
| FCI | CAOCX | Diameter of cartridge | Micron Rating | Length Of Cartridge |
|---|---|---|---|---|
| Oil Adsorbing | 68 MM | 001 Micron | 10″ Length | |
| 110 MM | 005 Micron | 20″ Length | ||
| 010 Micron | 30″ Length | |||
| 025 Micron | 40″ Length |
