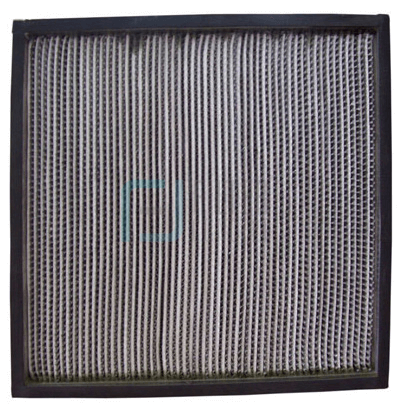

Hepa Filter
Hepa Filters are designed to meet requirements of very fine filtration up to 0.3 microns at the high efficiency of 99.99 %. We have added a new feature in conventional Hepa Filters by using spun bonded polyester media which is easy to clean and maintain. These filters are available with different coatings like PTFE coating, PTFE lamination & more for better dust release. Due to hydrophobic & oleo phobic treatment on media, it does not allow any moisture & oil contents to pass through it.
- Low pressure drop due to pleated configuration.
- Easy to install.
- No bypassing.
- High dirt holding capacity.
- High filtration efficiency.
- Good mechanical strength.
- Retrofit to any standard make.
- Configuration.
- Flange type & Box type.
Sizes available
- 610 mm x 610 mm x 50 mm / 100 mm / 150 mm / 300 mm
- 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm
- 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm
- Customized sizes are available on request
- Filtration Rating : 0.3 micron & more
- Filtration efficiency : 90 – 99.9 %
- Frame Material : SS 304 / GI (Galvanized Steel) / Aluminum
Powder coated / CRC powder coated or Zinc coated - Filter media : Glass Fiber media / Spun bonded polyester
media
